Diamond Drill Bits

Yes, most diamond drill bits use industrial-grade diamonds, which are real diamonds but not gem-quality. These synthetic or natural industrial diamonds are extremely hard and are bonded to the bit's cutting edge using methods like vacuum brazing or laser welding to grind through hard materials efficiently.

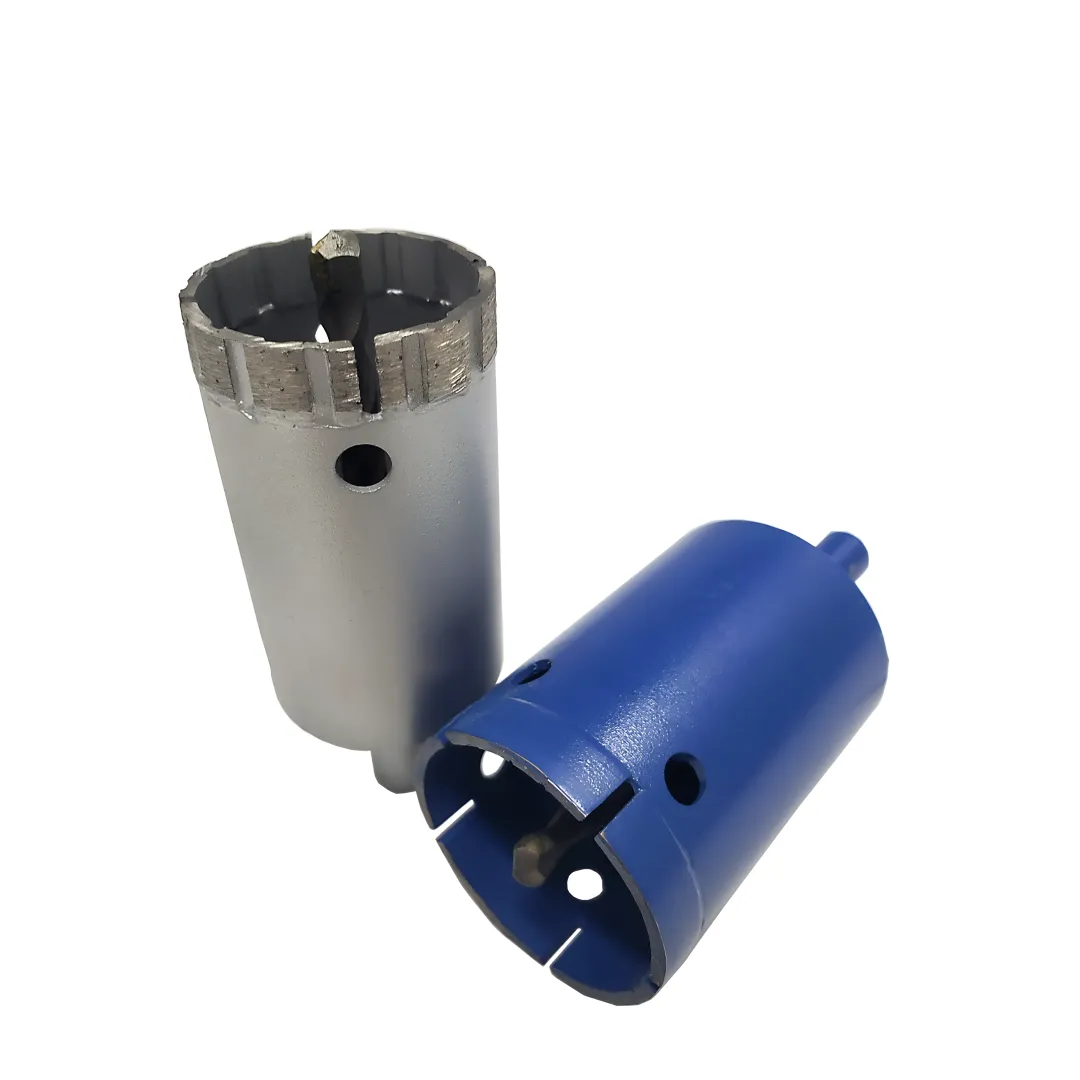

Diamond drill bits have a distinct grainy or speckled cutting edge where diamond particles are visibly embedded in a metal bond, rather than a smooth machined edge like standard twist bits. They're also typically labeled by rim type, such as turbo, continuous rim, or segmented, and are designed for tile, stone, or masonry use.

Wet drilling uses water to cool the diamond segments and flush away debris, extending bit life and improving cut quality, especially for larger core bits. Dry drilling is more convenient for smaller jobs or indoor work without water access. Many bits, like vacuum brazed core bits, are rated for both wet and dry operation.

Diamond hole saws typically range from 1/2" to 4" in diameter, while core bits span a much wider range, from as small as 1/8" up to 12" depending on the bond technology and intended application. Larger diameters are generally used for structural concrete coring, while smaller sizes suit tile and fixture installation.

Depending on the bond type and segment design, diamond drill bits can cut through tile, porcelain, granite, marble, natural stone, masonry, brick, quartz, and both standard and reinforced concrete. Turbo segmented and laser-welded bits are typically rated for tougher materials like reinforced concrete and hard aggregates.

Common arbor thread options include 5/8"-11" and 1 1/4"-7", which are standard across most core drilling equipment. Always confirm the arbor thread on your drill or core rig matches the bit before purchasing to ensure proper fit and safe operation.
