4 Inch Diamond Core Drill Bits for Concrete

Laser welded bits bond diamond segments to the steel barrel using high-heat laser fusion, making them ideal for wet drilling in hard concrete and masonry. Vacuum braze technology chemically bonds diamonds to the surface, offering a stronger diamond-to-surface bond with no bond wear, and supports both wet and dry operation on tile, stone, and granite.

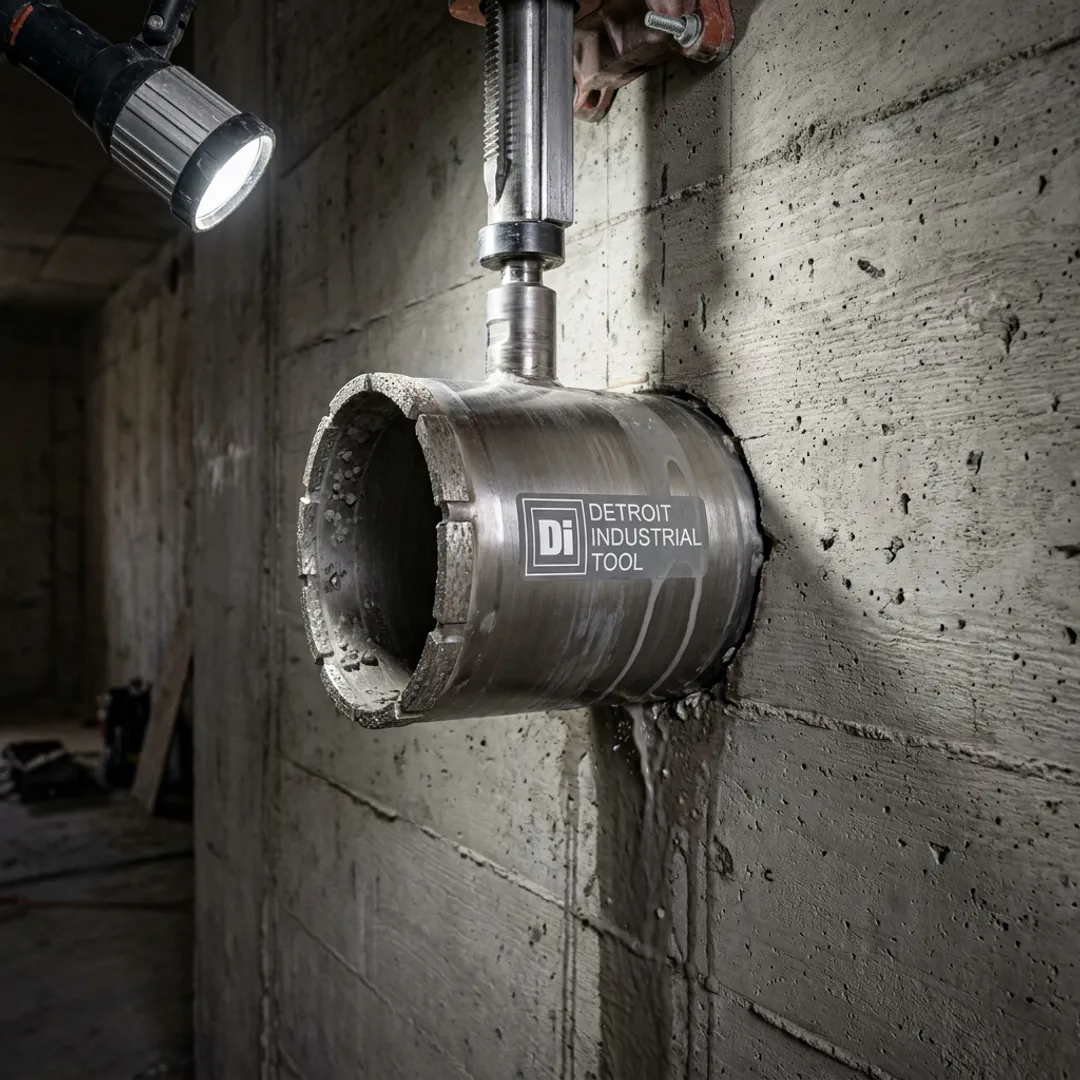

Yes. DI Tool's 4 inch concrete core bits are specifically designed to cut through reinforced concrete. The laser welded turbo segments are built to handle rebar and hard aggregate without segment loss, unlike standard core bits that may fail or stall when encountering steel reinforcement in concrete structures.

DI Tool's 4 inch diamond core drill bits are compatible with 1 1/4" – 7" and 5/8" – 11" arbor thread options. These two arbor sizes cover the majority of professional core drilling rigs and handheld drill motors used in construction and renovation applications across the USA.

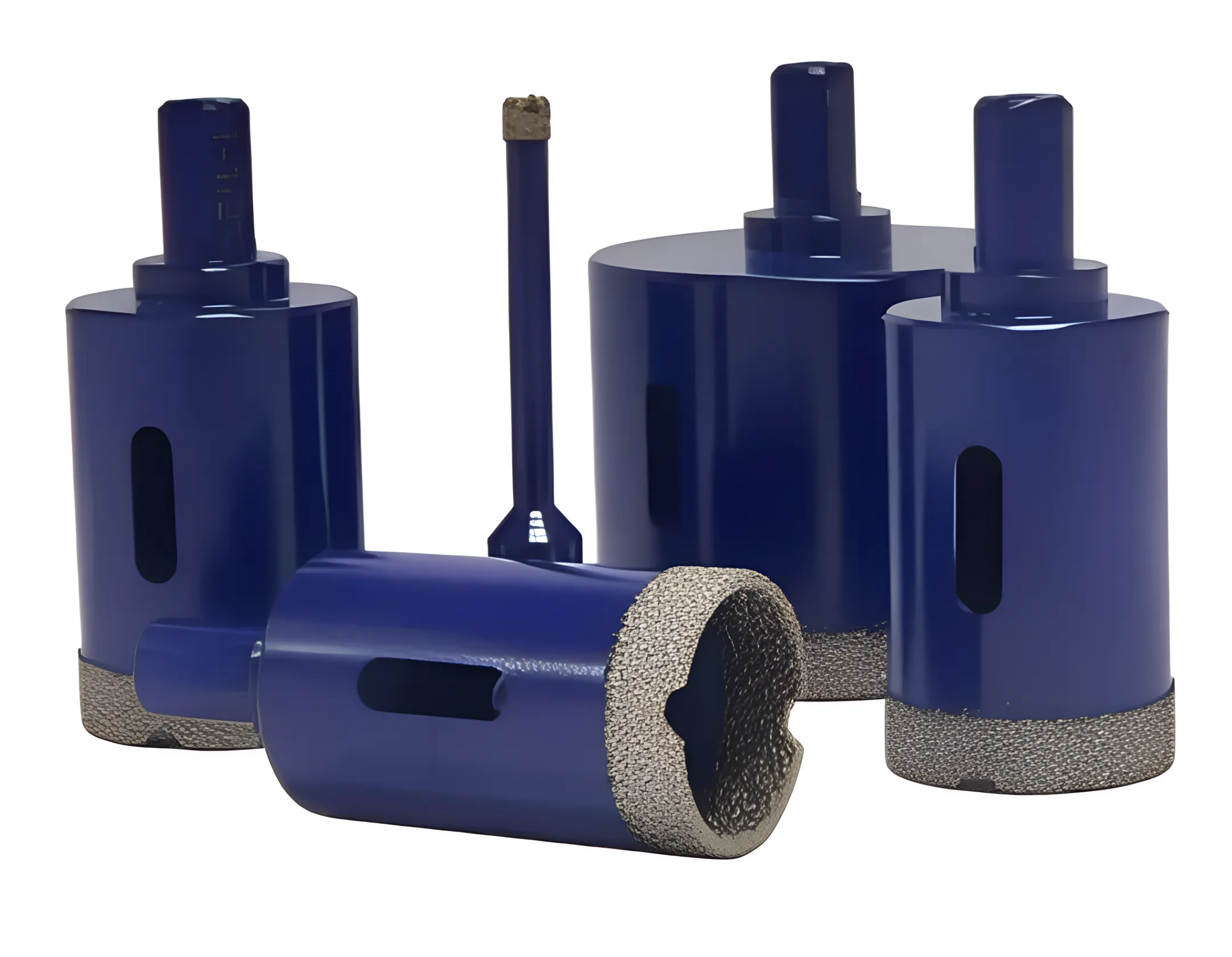

For hard concrete and reinforced concrete drilling, wet operation is strongly recommended. Water cools the bit, flushes slurry from the hole, and significantly extends bit life. DI Tool's Shark Series Pro Bit supports both wet and dry operation, while the laser welded concrete core bits are optimized for wet use on demanding structural drilling jobs.

DI Tool's concrete core bits have a standard length of 14 inches, providing sufficient depth for most structural coring applications. This length accommodates drilling through walls, slabs, and footings commonly encountered in construction and renovation projects, ensuring clean, full-depth cores without needing extensions on typical jobs.

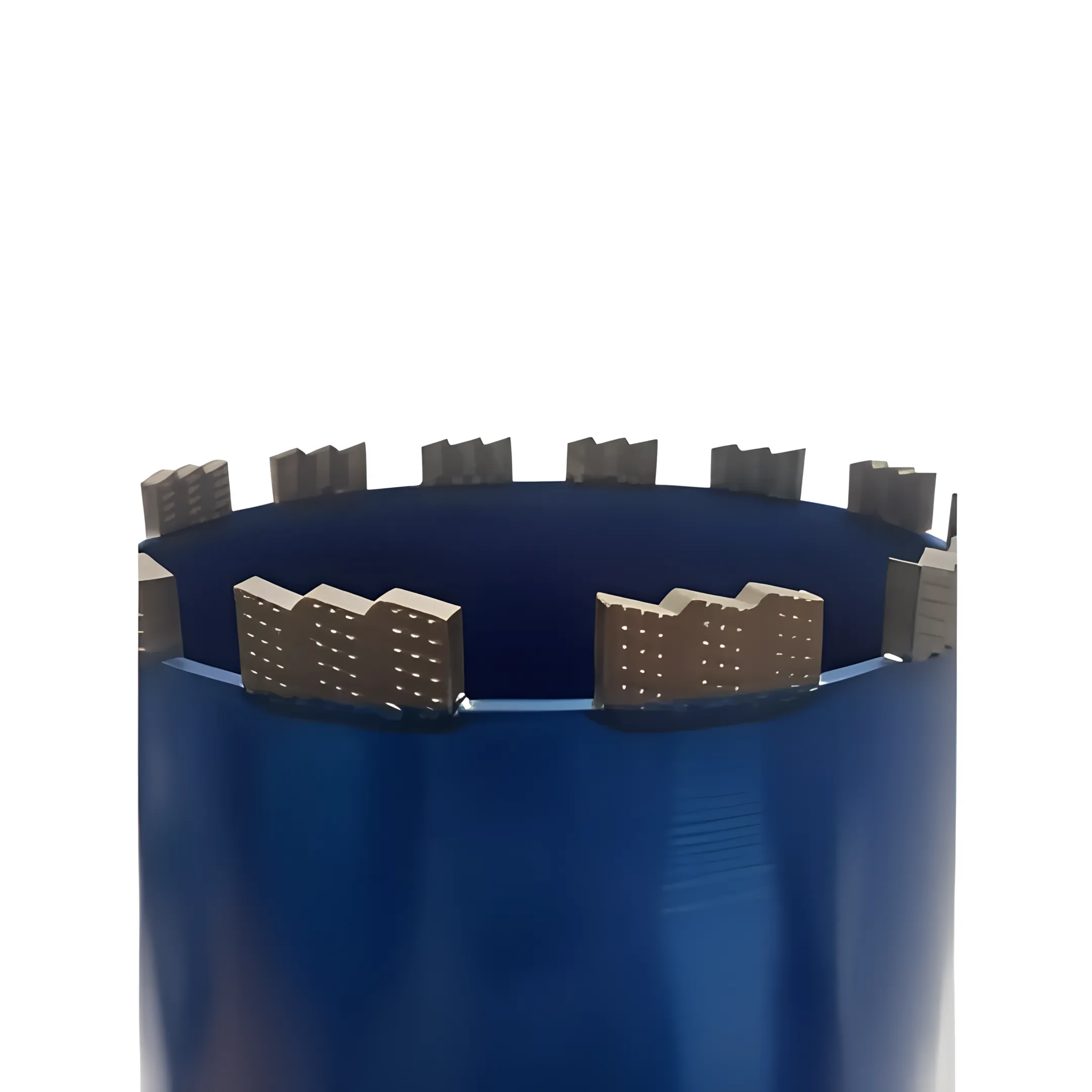

Turbo segments feature a spiral or wave-shaped profile that increases water flow and cooling contact around the cutting face. This reduces heat buildup, accelerates debris removal, and allows the diamonds to engage fresh material more consistently. The result is significantly faster drilling speeds and longer bit life compared to conventional flat-segment diamond core bits.
